High Precision Insertion Return Loss Tester with 14.8 ~ 75dB Measurement Range and 0.25dB Accuracy Fiber Optic Test Station

1
MOQ
$798.23-869.15
Preis
High Precision Insertion Return Loss Tester with 14.8 ~ 75dB Measurement Range and 0.25dB Accuracy Fiber Optic Test Station
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Messbereich: +3 ~ -75 dBm
Auflösung: ±0.3dB
Betriebstemperatur: +10℃ ~ +50℃
Lichtquellewellenlänge: MM:850nm/1300nm SM:1310/1550/650,850 1310/14
Gewicht: 3 kg
Wellenlänge: 1310/1550nm
Optikstecker: FC/APC
Rückflussdämpfungs-Strecke: 14,8 ~ 75 dB
Laserstabilität: 0,05 dB (1 Stunde bei 25 °C)
Messgenauigkeit: 0.25 dB
Wellenlängenbereich: 800~1700nm
Kalibrierte Wellenlänge: 850/1300/1310/1550nm
Fotodetektor: Ingaas
Anzeigemodi: dBm/dB/xW
Abmessungen: 360 x 240 x 130 mm
Hervorheben:

14.8 ~ 75dB Return Loss Measurement Range Fiber Optic Test Station

,

0.25dB Measurement Accuracy Insertion Return Loss Tester

,

±0.3dB Resolution IL & RL Tester
Grundinformation
Herkunftsort: Guangdong, China
Markenname: chuanglixun
Modellnummer: CLX-CH03, CLX-CH03
Zahlung und Versand AGB
Produkt-Beschreibung

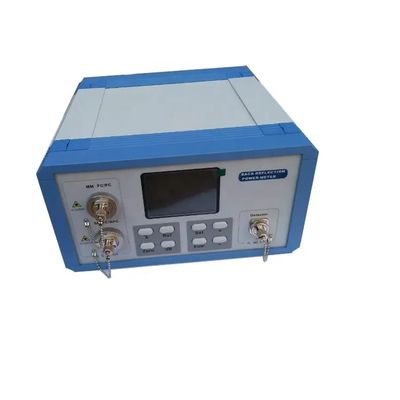

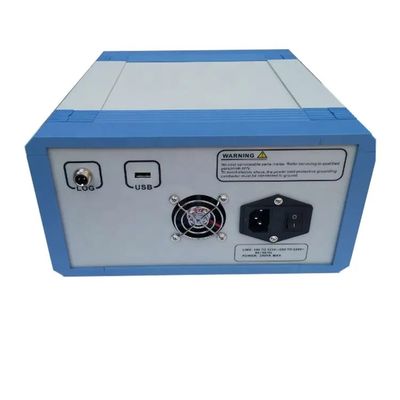

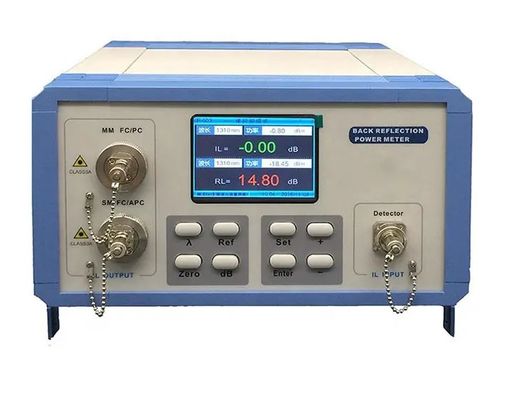

CLX-CH03 Fiber Optic Patchcords IL&RL Test Station Insertion Loss Return Loss Tester
High Precision Insertion Return Loss Tester with 14.8 ~ 75dB Measurement Range and 0.25dB Accuracy Fiber Optic Test Station 0 High Precision Insertion Return Loss Tester with 14.8 ~ 75dB Measurement Range and 0.25dB Accuracy Fiber Optic Test Station 1
Insertion Return Loss Tester
The CLX-CH03 is designed for precise measurement of insertion loss and return loss in fiber optic connections. Its applications include:
  • Testing pigtails and patch cords
  • Optical connections in communication equipment rooms and distribution frames
  • Optical connections in various apparatus and equipment
Key Features
  • High measurement accuracy
  • Synchronously auto-setting wavelength
  • Multiple working modes
  • User-friendly operation
  • Ergonomic design
  • Universal optical connector with easy cleaning
  • USB connectivity
High Precision Insertion Return Loss Tester with 14.8 ~ 75dB Measurement Range and 0.25dB Accuracy Fiber Optic Test Station 2 High Precision Insertion Return Loss Tester with 14.8 ~ 75dB Measurement Range and 0.25dB Accuracy Fiber Optic Test Station 3 High Precision Insertion Return Loss Tester with 14.8 ~ 75dB Measurement Range and 0.25dB Accuracy Fiber Optic Test Station 4
Technical Specifications
Parameter Value
Product Name Insertion and Return Loss test Station
Wavelength 1310/1550nm
Optic Connector FC/APC
Return Loss measurement Range 14.8 ~ 75dB
Output Stability of laser source 0.05dB(1 hour@25°C)
Measurement accuracy 0.25dB
Resolution ±0.3dB
Wavelength Range 800~1700nm
Calibrated wavelength 850/1300/1310/1550nm (others optional)
Optic Connector (Power Meter) Interchangeable FC/SC/ST/2.5mm Universal /1.25mm adaptors
Photo detector InGaAs
Display modes dBm/dB/xW
Communication Port USB
Dimensions 360×240×130mm
Weight 2.8kg
High Precision Insertion Return Loss Tester with 14.8 ~ 75dB Measurement Range and 0.25dB Accuracy Fiber Optic Test Station 5 High Precision Insertion Return Loss Tester with 14.8 ~ 75dB Measurement Range and 0.25dB Accuracy Fiber Optic Test Station 6
Shipping Information
We ship worldwide using major carriers including DHL, FEDEX, UPS, EMS, TNT or by sea. You may provide your courier account for optimized shipping costs.
High Precision Insertion Return Loss Tester with 14.8 ~ 75dB Measurement Range and 0.25dB Accuracy Fiber Optic Test Station 7
Frequently Asked Questions
Are you a factory or a trader?
We are the manufacturer.
What is your MOQ?
Minimum order quantity is 1 piece.
Do you provide sample services?
Yes, we provide samples.
How will you ship to me?
Standard shipping takes 4-6 days via DHL or FedEx. Delivery time may vary based on order quantity.
How do we pay?
We accept advance booking or multiple payment methods including T/T and T/L.
How long is your product warranty?
1 year warranty (free repairs except for consumables). After warranty period, cost-based support continues.
Do you provide customized services?
Yes, we offer customization based on customer requirements.
High Precision Insertion Return Loss Tester with 14.8 ~ 75dB Measurement Range and 0.25dB Accuracy Fiber Optic Test Station 8 High Precision Insertion Return Loss Tester with 14.8 ~ 75dB Measurement Range and 0.25dB Accuracy Fiber Optic Test Station 9
